Test bridge

Initialize token contracts

  • Create NFTs on Kylin

For Kylin we'll setup the collection and schema then mint an asset to the test contract. If you have a pre existing NFT, you can send it to the Kylin test account.

export AUTHOR=$KYLIN_TEST_ACCOUNT
export COLLECTION_NAME=nftauthcoll3 # create a different one because this one's taken
export ALLOW_NOTIFY=1
export AUTHORIZED_ACCOUNTS=[$KYLIN_TEST_ACCOUNT] # add additional accounts if necessary
export NOTIFY_ACCOUNTS=[""]
export MARKET_FEE=0.01 # cause we're fair people
export DATA=[]
export SCHEMA_NAME=nftauthsche1
export SCHEMA_FORMAT=[ {name: "name", type: "string"}, {name: "series", type: "string"}, {name: "moment", type: "string"}, {name: "description", type: "string"}, {name: "img", type: "image"}, {name: "backimg", type: "string"}, {name: "rarity", type: "string"} ]
# not working, if you know how to make it (passing array as variable) work, please edit!!
# cleos -u $KYLIN_ENDPOINT push action $KYLIN_TOKEN_ACCOUNT createcol "[\"$AUTHOR\",\"$COLLECTION_NAME\",\"$ALLOW_NOTIFY\",\"$AUTHORIZED_ACCOUNTS\",\"$NOTIFY_ACCOUNTS\",\"$MARKET_FEE\",\"$DATA\"]" -p $KYLIN_TEST_ACCOUNT@active

# create collection
cleos -u $KYLIN_ENDPOINT push transaction '{
  "delay_sec": 0,
  "max_cpu_usage_ms": 0,
  "actions": [
    {
      "account": "bridgeassets",
      "name": "createcol",
      "data": {
        "author": "natdeveloper",
        "collection_name": "nftauthcoll3",
        "allow_notify": true,
        "authorized_accounts": [
          "natdeveloper"
        ],
        "notify_accounts": [],
        "market_fee": 0.01,
        "data": []
      },
      "authorization": [
        {
          "actor": "natdeveloper",
          "permission": "active"
        }
      ]
    }
  ]
}'

# create schema
cleos -u $KYLIN_ENDPOINT push transaction '{
  "delay_sec": 0,
  "max_cpu_usage_ms": 0,
  "actions": [
    {
      "account": "bridgeassets",
      "name": "createschema",
      "data": {
        "authorized_creator": "natdeveloper",
        "collection_name": "nftauthcoll3",
        "schema_name": "nftauthsche1",
        "schema_format": [
          {
            "name": "name",
            "type": "string"
          },
          {
            "name": "series",
            "type": "string"
          },
          {
            "name": "moment",
            "type": "string"
          },
          {
            "name": "description",
            "type": "string"
          },
          {
            "name": "img",
            "type": "image"
          },
          {
            "name": "backimg",
            "type": "string"
          },
          {
            "name": "rarity",
            "type": "string"
          }
        ]
      },
      "authorization": [
        {
          "actor": "natdeveloper",
          "permission": "active"
        }
      ]
    }
  ]
}'

If you get errors such as Transaction exceeded the current network usage limit imposed on the transaction, see the Kylin account setup guides to get more tokens and to stake for more resources.

  • Mint test tokens

We will mint some test NFT tokens to our test account.

Be sure to update the account name, the new asset owner, the collection name and the actor signing the transaction.

export AUTHORIZED_MINTER=$KYLIN_TEST_ACCOUNT
export COLLECTION_NAME=$COLLECTION_NAME
export SCHEMA_NAME=$SCHEMA_NAME
export TEMPLATE_ID=-1
export NEW_ASSET_OWNER=$KYLIN_TEST_ACCOUNT
export IMMUTABLE_DATA=[ { "key": "name", "value": [ "string", "The New Silk Road" ] }, { "key": "img", "value": [ "string", "QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/main/genesis/1.png" ] }, { "key": "backimg", "value": [ "string", "QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/main/genesis/1_back.jpg" ] }, { "key": "series", "value": [ "string", "Through the Looking Glass" ] }, { "key": "moment", "value": [ "string", "6 - The Silk Road" ] }, { "key": "rarity", "value": [ "string", "genesis" ] }, { "key": "description", "value": [ "string", "Named after an ancient Chinese trade route, the digital silk road is a virtual pathway for the delivery of merchandise." ] } ]
export MUTABLE_DATA=[]
export TOKENS_TO_BACK=[]

cleos -u $KYLIN_ENDPOINT push transaction '{
  "delay_sec": 0,
  "max_cpu_usage_ms": 0,
  "actions": [
    {
      "account": "bridgeassets",
      "name": "mintasset",
      "data": {
        "authorized_minter": "natdeveloper",
        "collection_name": "nftauthcoll3",
        "schema_name": "nftauthsche1",
        "template_id": -1,
        "new_asset_owner": "natdeveloper",
        "immutable_data": [ { "key": "name", "value": [ "string", "The New Silk Road" ] }, { "key": "img", "value": [ "string", "QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/main/genesis/1.png" ] }, { "key": "backimg", "value": [ "string", "QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/main/genesis/1_back.jpg" ] }, { "key": "series", "value": [ "string", "Through the Looking Glass" ] }, { "key": "moment", "value": [ "string", "6 - The Silk Road" ] }, { "key": "rarity", "value": [ "string", "genesis" ] }, { "key": "description", "value": [ "string", "Named after an ancient Chinese trade route, the digital silk road is a virtual pathway for the delivery of merchandise." ] } ],
        "mutable_data": [],
        "tokens_to_back": []
      },
      "authorization": [
        {
          "actor": "natdeveloper",
          "permission": "active"
        }
      ]
    }
  ]
}'

  • Register mapping

The collection author for an NFT must register that NFT with the bridge before users can transfer.

This will be performed in 2 steps regcolection and regnft.

The address is the ERC1155Tradeable.sol address.

Be sure to update the address to the atomic assets contract address if you're in production

cleos -u $KYLIN_ENDPOINT push transaction '{
  "delay_sec": 0,
  "max_cpu_usage_ms": 0,
  "actions": [
    {
      "account": "elevenbridge",
      "name": "regcolection",
      "data": {
        "collection_name": "nftauthcoll3",
        "address": "0xB40fa4E1B1d0Dcc4DAF9d7274E5Ace8E940e8d8F"
      },
      "authorization": [
        {
          "actor": "natdeveloper",
          "permission": "active"
        }
      ]
    }
  ]
}'

Register NFT:

cleos -u $KYLIN_ENDPOINT push transaction '{
  "delay_sec": 0,
  "max_cpu_usage_ms": 0,
  "actions": [
    {
      "account": "elevenbridge",
      "name": "regnft",
      "data": {
        "template_id": -1,
        "schema_name": "nftauthsche1",
        "collection_name": "nftauthcoll3",
        "immutable_data": [
          {
            "key": "name",
            "value": [
              "string",
              "The New Silk Road"
            ]
          },
          {
            "key": "img",
            "value": [
              "string",
              "QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/main/genesis/1.png"
            ]
          },
          {
            "key": "backimg",
            "value": [
              "string",
              "QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/main/genesis/1_back.jpg"
            ]
          },
          {
            "key": "series",
            "value": [
              "string",
              "Through the Looking Glass"
            ]
          },
          {
            "key": "moment",
            "value": [
              "string",
              "6 - The Silk Road"
            ]
          },
          {
            "key": "rarity",
            "value": [
              "string",
              "genesis"
            ]
          },
          {
            "key": "description",
            "value": [
              "string",
              "Named after an ancient Chinese trade route, the digital silk road is a virtual pathway for the delivery of merchandise."
            ]
          }
        ],
        "uri": "https://cloudflare-ipfs.com/ipfs/QmSXDsFeNaPa3CJKmn8WKBnA421Zv5r3Ra8n71LZhvEi9s/blocks/1mb.png"
      },
      "authorization": [
        {
          "actor": "natdeveloper",
          "permission": "active"
        }
      ]
    }
  ]
}'

Let's test by sending an NFT across.

Be sure to update the asset_id as it may be a different number for you, the asset id, as it may be a different number for you. This can be found in the bridgeassets:mintasset action. To make it simple you can find it by using this query https://kylin.eosq.app/search?q=%28auth%253Abridgeassets%2520OR%2520receiver%253Abridgeassets%29%2520action%253Amintasset

export FROM=$KYLIN_TEST_ACCOUNT
export TO=$KYLIN_BRIDGE_ACCOUNT
export ASSET_ID=1099511627801
export MEMO="0x218425295b4a2fa1c73D5108e185921fF580b2fB"
export KYLIN_TOKEN_ACCOUNT=bridgeassets
cleos -u $KYLIN_ENDPOINT push action $KYLIN_TOKEN_ACCOUNT transfer "[\"$FROM\",\"$TO\",[\"$ASSET_ID\"],\"$MEMO\"]" -p $KYLIN_TEST_ACCOUNT@active

Now let's see if the tokens make it! Navigate to your user account's address

Now let's send it back!

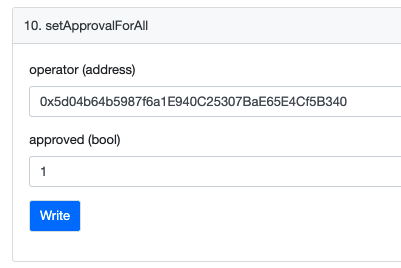

Go to your ERC1155Tradeable.sol NFT contract and scroll to #10. Set operator to atomictokenpeg1155 contract account, and approved to 1.

Click on the contract tab, go to Write Contract, and connect using your user's account.

Then go to the atomictokenpeg1155 contract and scroll to #6. Type in the tokenId from the transaction that was sent to your user account.

To determine the destination address we're going to use a helper function on our bridge contract.

cleos -u $KYLIN_ENDPOINT push action $KYLIN_BRIDGE_ACCOUNT getdest '["YOUR EOSIO USER ACCOUNT HERE"]' -p $KYLIN_BRIDGE_ACCOUNT@active

The assertion error will relay the uint64_t for the account specified, and you said EOSIO assertion messages weren't good for anything, pish posh, we move on!

Destination EOSIO Account Name Value: 11075078730411234672

The token contract is the ERC1155Tradeable.sol token contract.

Fire. Example trx

And shazam you've got the nft! https://kylin.eosq.app/tx/45b59e2db91836b4b601c7bc72a278968c2fce5f5836d7222cf62e8fa3db4df6
